Golden Spike - The "Benchwork"

So, here we are, 24ish hours into the Golden Spike project.
Actually starting to come together in my mind as I start to make some definitive decisions about the who/how/where/why/what of it all.
First part is the benchwork. This won't be traditional benchwork as we normally view it.

The concept here is basically a box which will sit on a standard 6 foot long folding table.

Easy to accomodate, small enough to fit in most cars, and the standard 6 foot folding table, (a) ungodly common at your average railroad show, and (b) short enough that most of the kids can get an up-close and personal look. And if the little monsters can't keep their fingers to themselves, we can boost the whole thing up 1-2-3 feet by putting milk crates or some such at the corners.

So, starting with the box.

6 foot long x 18 inches wide. Standard 1x4"

A "lip" of 1x1" stock inside, the top of the 1x1" an inch down from the top of the 1x4"

A 1/4" plywood sheet on top of those "lip" pieces, creating a false bottomed box, that is approx, 3/4" deep, with approx 3 inches of "under" for all the wiring and what have you.

On top of the 1/4" plywood we'll start with 1 inch pink foam insulation and build up from there for elevation(s).

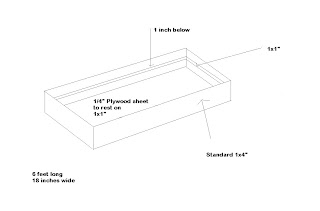

This is the rough drawing of the box concept.

FYI, for those playing along at home...

1. Get a damn life !

2. No, seriously,, my junk isn't that interesting !

3. The concept is based on an article by Richard White, "The ON30 Payless Mine Company" featured in the Sept/Oct 1996 issue of the Narrow Gauge and Short Line Gazette. Hopefully, we'll do it justice, should be able to figure this out,, I've only thought about the article and building a reasonable facsimile for 14+ years !
